Josiah Willard Gibbs, Gibbs Models: computer-visualized thermodynamic surfaces

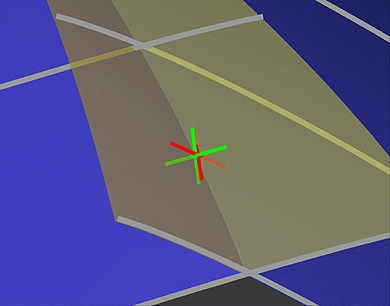

A close-up of the intersection region showing (from the red and green crosses) that stable vapor is on the left, stable liquid on the right.

As noted before, the white curves of constant µ₃ are actually separate graphical elements (tapes) that lie above the blue and yellow phase surfaces. The slight gap (which was necessary for graphical purposes) causes the curves not to intersect at precisely the same spatial point as the phase surfaces. The error is a visual artifact only.



		Click on the image for full-size.
		A close-up of the intersection region showing (from the red and green crosses) that stable vapor is on the left, stable liquid on the right. As noted before, the white curves of constant µ₃ are actually separate graphical elements (tapes) that lie above the blue and yellow phase surfaces. The slight gap (which was necessary for graphical purposes) causes the curves not to intersect at precisely the same spatial point as the phase surfaces. The error is a visual artifact only.
