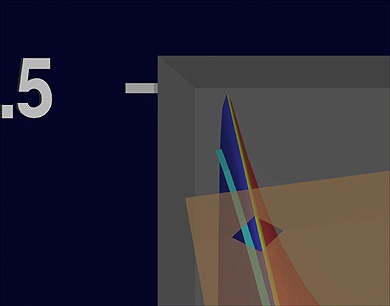

A magnification of the upper-left corner of the Gibbs surface showing the fine detail of the blue, yellow, and red regions in the liquid state at low entropy. The diamond cutout marks one point of tangency of the rolling plane. The light-blue strip is a separate graphical element that appears in the overall image as a curve representing the critical isotherm.
|
||||
 |
||||
